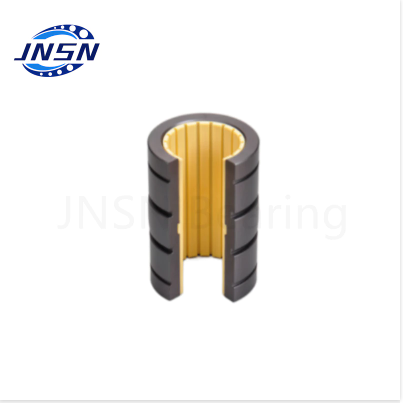

What is Sleeve Bearing?

A sleeve bearing is a simple type of bearing that generally consists of a cylindrical "sleeve" allowing relative motion by sliding, as opposed to rolling. Typically made from materials that promote lower friction and durability, these bearings are designed to slide between two parts and are often used where high speeds and minimal maintenance are crucial. Sleeve bearings play a significant role in many types of machinery, acting as crucial components that facilitate smooth operation and enhance the mechanical reliability of systems by absorbing and dispersing friction that would otherwise lead to premature wear and failure.

Types of Sleeve Bearings

Sleeve bearings are categorized based on their design and the specific application needs they serve. The main sleeve bearing types include:

1. Plain Sleeve Bearings: These are the most basic type, featuring a simple cylindrical design that fits snugly between the moving parts. Plain sleeve bearings are versatile and can be made from a variety of materials.

2. Flanged Sleeve Bearings: Incorporating a flange at one end, this flange type sleeve bearing is used to prevent axial movement and help position the bearing securely, making them ideal for applications requiring more precise mounting.

3. Thrust Sleeve Bearings: Designed to accommodate axial loads, thrust sleeve bearings support forces along the axis of the shaft and are typically flat and round.

The materials used in sleeve bearings vary based on the application's requirements for durability, friction, and resistance to environmental factors. Common materials include:

1. Bronze: Known for its durability and excellent resistance to wear and corrosion, bronze sleeve bearings are common in high-load applications.

2. Plastic: Plastic bearings are used in applications requiring low weight, corrosion resistance, and quieter operation.

3. Composite: These bearings are made from a mixture of materials, such as metals and polymers, to combine the benefits of each material and suit specific application needs.

This detailed categorization and description of flange type sleeve bearing not only enhance the reader's understanding but also optimize the content for search engines by addressing directly related keywords and questions that potential readers might use to seek such information.

How Does a Sleeve Bearing Work?

Sleeve bearings function primarily through a sliding motion between the bearing surface and the moving part, such as a shaft. The basic principle behind their operation is the creation of a smooth, lubricated surface that allows the rotating shaft to slide with minimal friction. Sleeve bearings are typically designed with a smooth inner surface closely conforming to the outer surface of the shaft they support. As the shaft rotates, the sleeve bearing holds it in place and allows it to move effortlessly.

Discussion on the Lubrication Process

Lubrication is a critical aspect of sleeve bearing operation, as it significantly reduces wear and heat buildup caused by friction. There are two main types of lubrication methods used with sleeve bearings:

1. Grease Lubrication: This involves the use of grease, which is packed into the bearing housing. The grease provides a consistent lubrication layer and is particularly useful in applications where the bearing is not accessible for frequent maintenance.

2. Oil Lubrication: Oil can be used in systems where a continuous flow can be maintained, such as in oil bath or circulating systems. This method is effective at dissipating heat and is ideal for high-speed applications.

Proper lubrication ensures that the bearing operates smoothly and lasts longer, and it is vital for preventing metal-to-metal contact that can lead to premature wear and failure.

Sleeve Bearing vs Journal Bearing

While both sleeve bearings and journal bearings are types of plain bearings used to reduce friction, there are distinct differences in their design and functionality:

1. Design: Sleeve bearings are typically cylindrical with a continuous smooth inner surface, whereas journal bearings may include additional features like grooves or wedges that help channel lubricant more effectively.

2. Functionality: Sleeve bearings are suited for high-speed, low-load applications due to their simple design. In contrast, journal bearings are designed to handle higher loads and are used in applications where load conditions are variable.

3. Lubrication Needs: Sleeve bearings generally require less maintenance in terms of lubrication, while journal bearings might need more frequent lubrication checks and adjustments depending on the application.

Sleeve bearings are commonly found in electric motors and household appliances due to their efficiency and quiet operation, whereas journal bearings are often seen in heavier machinery such as turbines, large pumps, and compressors where robustness and load-bearing capacity are required.

What is a sleeve bearing used for?

Sleeve bearings are utilized in a wide range of applications across various industries due to their versatility and reliability. Some of the key applications include:

1. Automotive: In cars, sleeve bearings are used in components like gearboxes, clutches, and steering systems, where smooth operation is essential.

2. Electrical: Electric motors of all sizes rely on mounted sleeve bearings for efficient and quiet operation, making them ideal for household appliances and power tools.

3. Manufacturing: Many types of conveyor systems, machine tools, and automated manufacturing equipment use sleeve bearing with flange to ensure reliable and continuous operation.

Fans and blowers: Sleeve bearings are utilized in fans and blowers to reduce friction and allow for efficient operation.

Household appliances: Sleeve bearings can be found in appliances like washing machines, dryers, and refrigerators to support moving parts.

HVAC systems: Sleeve bearings are used in heating, ventilation, and air conditioning systems to support fan motors and other components.

Industrial machinery: Sleeve bearings are employed in a wide range of industrial equipment, including pumps, compressors, and conveyors.

Marine applications: Sleeve bearings are used in marine equipment such as propeller shafts and winches to support rotating components.

These applications demonstrate the adaptability of sleeve bearings to various operational demands, highlighting their critical role in both general and specialized machinery. By choosing the appropriate bearing type for a specific application, manufacturers and engineers can significantly enhance the performance, durability, and efficiency of their equipment.

How to install sleeve bearing?

Installing a linear sleeve bearing requires careful attention to ensure proper alignment and smooth operation. Here are general steps to guide you through the installation process:

Prepare the components:

Ensure that the shaft and housing are clean and free of any dirt or debris.

Check the sleeve bearing for any damage or defects before installation.

Apply lubrication:

Apply a thin layer of lubricant to the inner surface of the sleeve bearing to reduce friction during installation.

Insert the sleeve bearing:

Slide the sleeve bearing onto the shaft or into the housing, depending on the specific application.

Make sure the bearing is aligned properly with the shaft or housing to prevent misalignment issues.

Secure the bearing:

Use retaining rings, set screws, or other appropriate fasteners to secure the sleeve bearing in place.

Ensure that the bearing is firmly seated and does not have any excessive play.

Check alignment:

Verify that the linear sleeve bearing is aligned correctly with the shaft or housing to prevent any issues with vibration or premature wear.

Test the installation:

Rotate the shaft by hand to check for smooth operation and to ensure that the bearing is functioning properly.

Listen for any unusual noises that may indicate misalignment or improper installation.

Final adjustments:

Make any necessary adjustments to the bearing position or alignment to ensure optimal performance.

Double-check the fasteners to ensure they are tightened securely.

By following these steps and paying attention to details during the installation process, you can ensure that the mounted linear sleeve bearing is properly installed and ready to provide reliable support for the rotating shaft in your specific application.

Factors to Consider When Selecting a Sleeve Bearing

Selecting the correct sleeve bearing for your application is crucial to ensuring optimal performance and longevity of your machinery. Here are some key factors to consider:

1. Load Capacity: Understand the radial and axial loads the bearing will need to support. Sleeve bearings are generally better suited for applications with lower axial loads.

2. Speed Requirements: Consider the operational speed of the machinery. High-speed applications may require sleeve bearings with special designs or materials to reduce friction and manage heat effectively.

3. Environmental Conditions: Factors such as temperature, humidity, and exposure to corrosive elements can affect the performance of a sleeve bearing. Choose materials and lubrication methods that can withstand your operating environment.

4. Alignment and Tolerance: Ensure that the mounted linear sleeve bearing can accommodate any shaft misalignment and operate within the tolerances required for your application. Misalignment can lead to increased wear and premature failure.

5. Size and Space Constraints: Sleeve bearings are available in various sizes and configurations. Make sure the bearing you choose fits within the physical constraints of your machinery without compromising its function.

Tips on Maintenance and Care

To ensure optimal performance and extend the life of your linear square sleeve bearings, consider the following maintenance tips:

1. Lubrication: Maintain a consistent lubrication schedule to prevent friction and wear. Use the correct type of lubricant as specified by the bearing manufacturer.

2. Routine Inspections: Regularly check sleeve bearings for signs of wear or damage, such as scoring, pitting, or corrosion. Early detection of potential problems can prevent costly repairs and downtime.

3. Proper Installation: Ensure that sleeve bearings are installed correctly according to manufacturer guidelines. Improper installation can lead to increased stress and premature failure.

4. Environmental Protection: Protect bearings from contaminants like dust, debris, and moisture. Seals or shields can be used to protect the bearing in harsh environments.

Conclusion:

In this comprehensive guide, we explored the various bearing sleeve types and functionalities of sleeve bearings, how they work, their applications across different industries, and how they compare to journal bearings. Linear square sleeve bearings are invaluable components that enhance the efficiency and reduce the operational costs of machinery through their ability to minimize friction and wear effectively.

Selecting the right sleeve bearing involves careful consideration of load capacities, speed requirements, environmental conditions, and more. Proper maintenance and care are equally important to ensure that these bearings continue to perform optimally over their expected lifespan. By understanding these factors and adhering to best practices in maintenance, you can maximize the benefits of sleeve bearings in your applications.

Ultimately, the role of sleeve bearings in modern machinery cannot be overstated. They are critical to the smooth and efficient operation of countless mechanical systems, proving essential in reducing operational costs and enhancing machine reliability. As technology advances, the development of more sophisticated and durable sleeve bearings will continue to play a pivotal role in industrial innovation.
