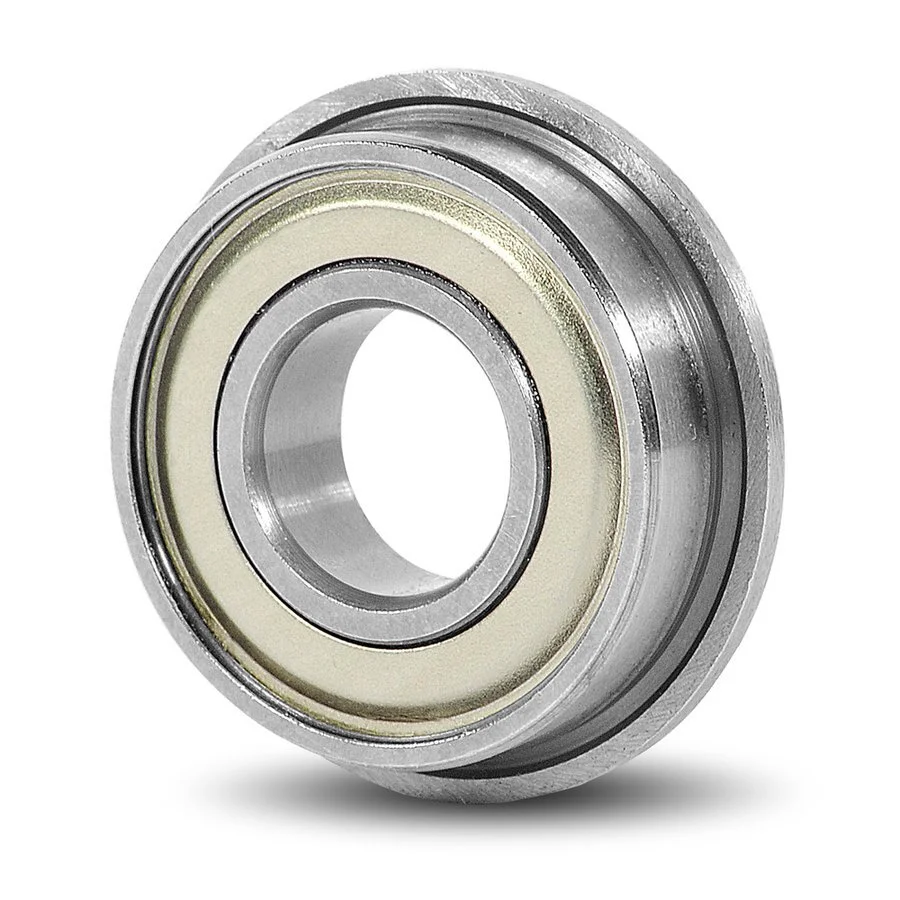

Stainless Steel Miniature Flanged Ball Bearing SS F 693 ZZ / SS F693 ZZ 3x8x4 mm
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

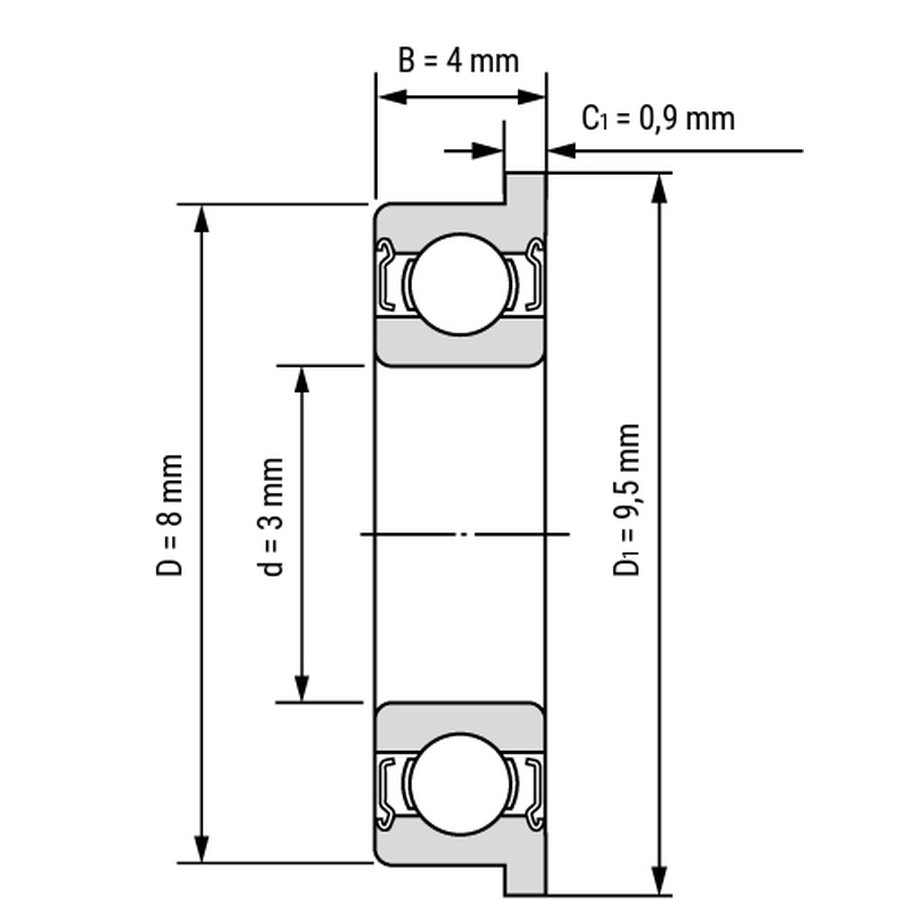

Technical Data
| Inside Diameter (mm): | 3 |
| Outside Diameter (mm): | 8 |
| Flange Diameter (mm): | 9.5 |
| Width (mm): | 4 |
| Flange Width (mm): | 0.9 |
| Rows Of Balls: | single row |
| Seal: | ZZ |
| Internal Clearance: | CN (Standard) |
| Ring Material: | Stainless Steel |
| Rolling Element Material: | Stainless Steel |
| Cage Material: | Stainless Steel |
| Flange: | yes |
| Slot & Snap Ring: | no |
| Full Complement Ball Set: | no |
| Product weight: | 0,001 Kg |
