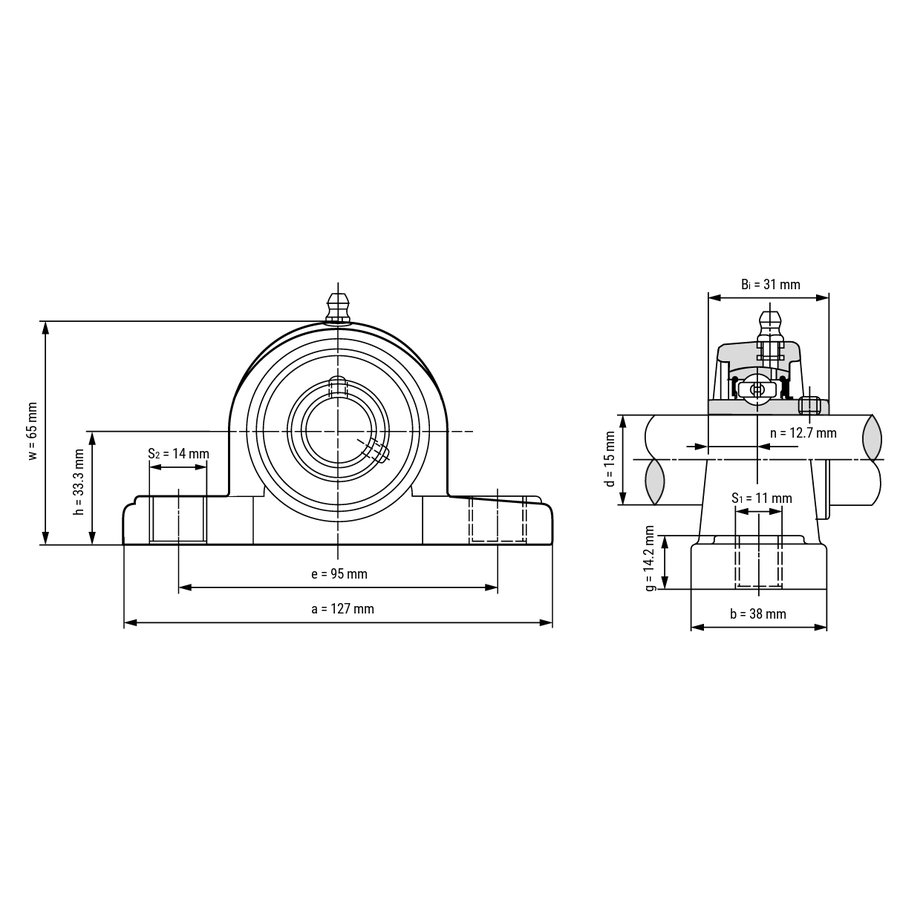

Inside Diameter (mm): | 15 |
a (mm): | 127 |
e (mm): | 95 |
w (mm): | 65 |
h (mm): | 33.3 |
Shaft Fastening: | Grub Screws |
Housing Type: | Plummer Block |
Number of Mounting Holes: | 2 |
Housing No.: | PPL 204 |
Grub Screw: | M6 |
Max. Tightening Torques (Nm) For Bearing Insert: | 5.5 |
Bearing No.: | SSUC 202 |
Ring Material: | Stainless Steel |
Rolling Element Material: | Stainless Steel |
Cage Material: | Stainless Steel |
Housing Material: | Plastic |
Product weight: | 0,310 Kg |
